Passion fruit juicer commercial fresh juice making machine

Passion Fruit Juice Extractor Machine Application:

The machine is mainly used for making jam, fruit juice, suitable for a variety of fresh fruit  in pulping separation,such as: orange flesh, grapes, kiwi, mulberry, waxberry, peach (to nuclear) and so on,it can change them into juice.It can be used to squeezing out the juice,and at the same time to  make the passion fruit pulp and seeds in separation.That means we can get juice,pericarp and seed via just one machine.So this equipment is not only a passion fruit juice machine, it’s also a peeling machine and passion fruit seed removing machine.

Passion Fruit Juice Making Machine Introduction:

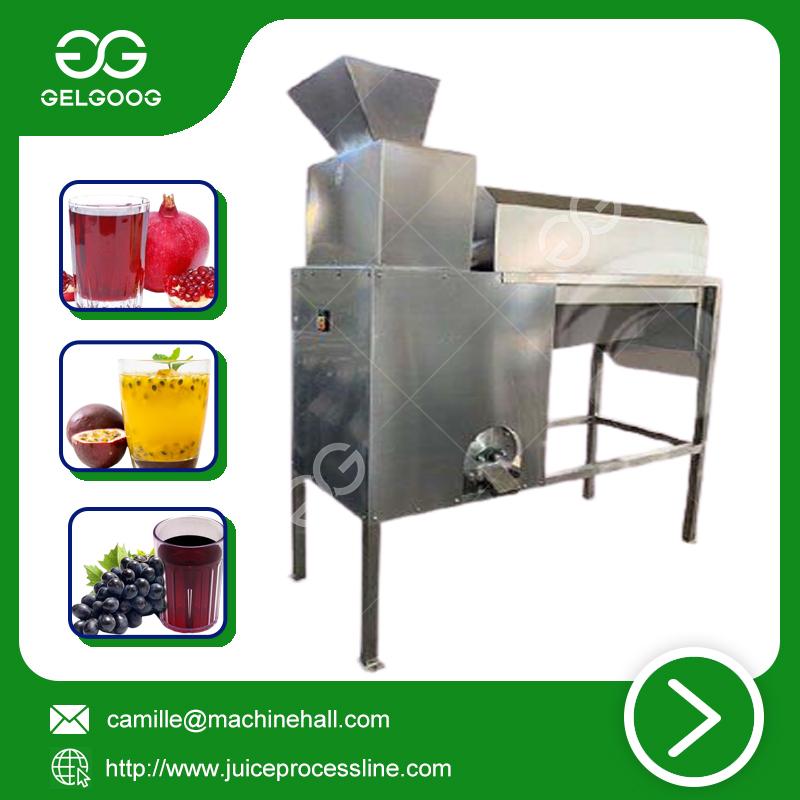

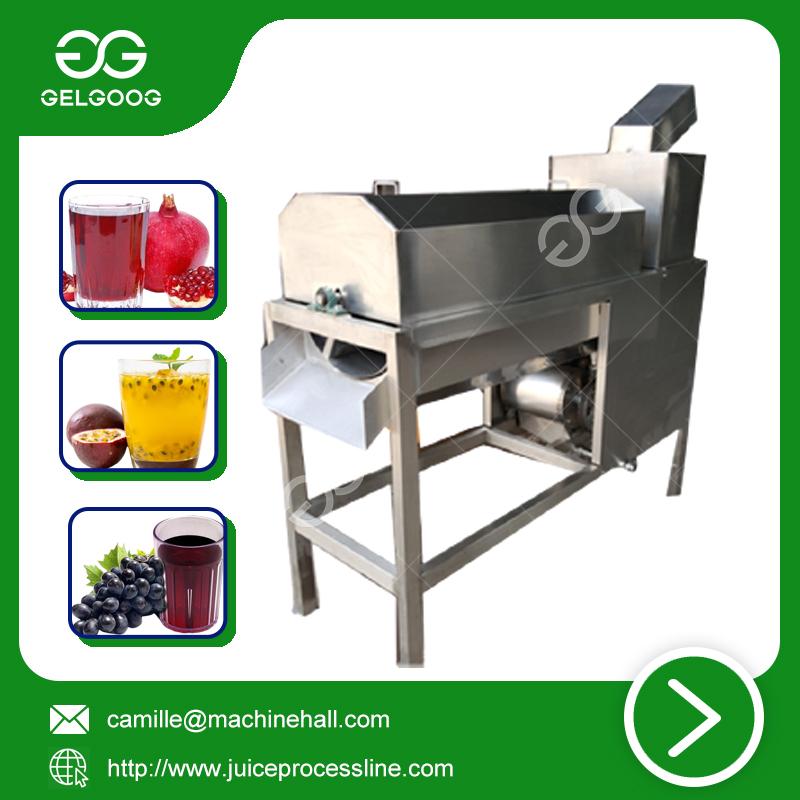

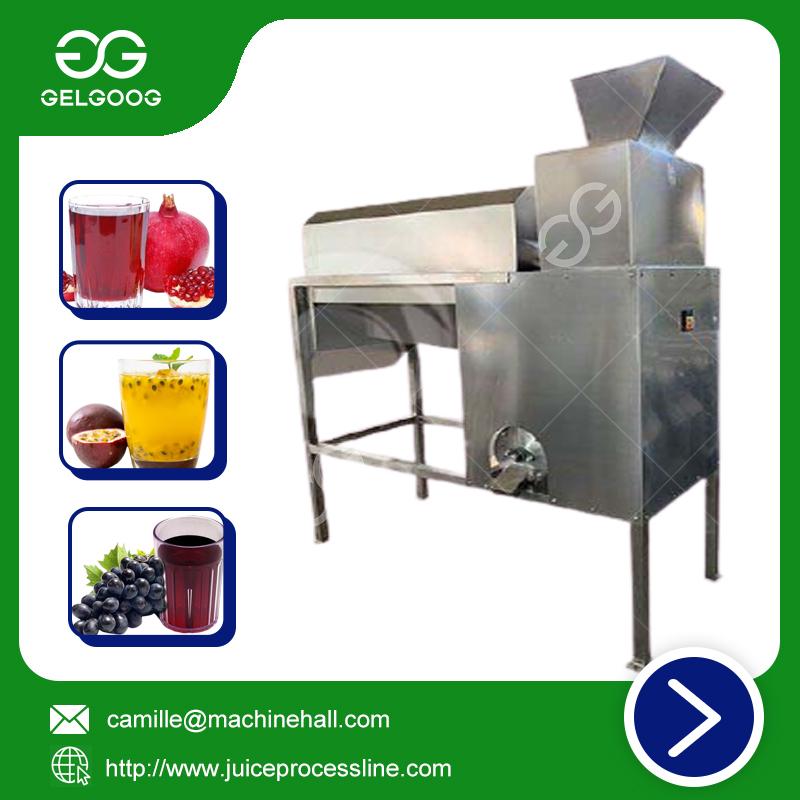

Whole machine is made of stainless steel, It consists of a hopper, crusher, separator tube, sub-seed tube, transmission, chassis and other components. When start working, the material first passes through the crusher, and then into the separator tube to separate skin, juice. pulp and seeds into the seed sub-cylinder, and then separate the juice .pulp and seeds. so as to achieve the purpose of separation of three things in addition to transmission parts. During working process, the passion fruit will be crushed firstly, then the skin will be separated. Finally the seed and juice will be separated. Therefore, this machine can be juicer machine, passion fruit peeling machine and passion fruit seed extractor machine as well.

The machine is mainly used toextract fruit and vegetable juices. The main components of the equipment is spiral, which increases gradually along the material residue outlet direction while the screw pitch reduces gradually. When the materials are pushed in by the spiral, due to the volume contraction of the spiral cavity, the materials are extracted.

Passion Fruit Juice Extractor Machine Features:

1.It is made of 304 stainless steel,which is in line with food hygiene.

2.The pulp and residues will separates automatically.

3.It is a combination of both in the production line, but also single production.

4.It can change different sieve and scraper blade angle for different pulping speed and effect.

5.It has high efficiency and large output.

6.It is easy to use and save the labor.

Technical parameter
