Introduction

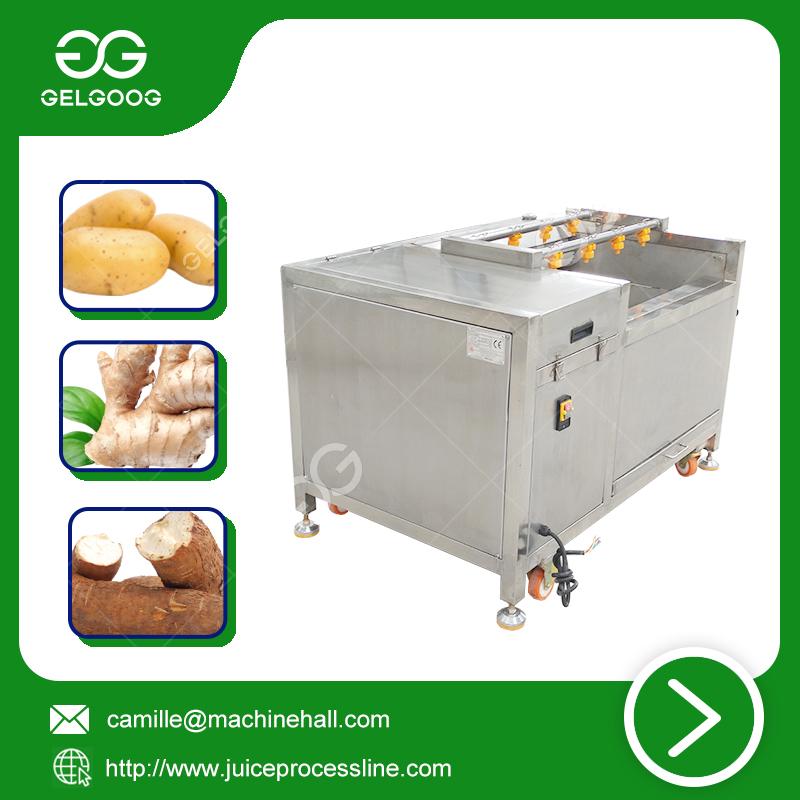

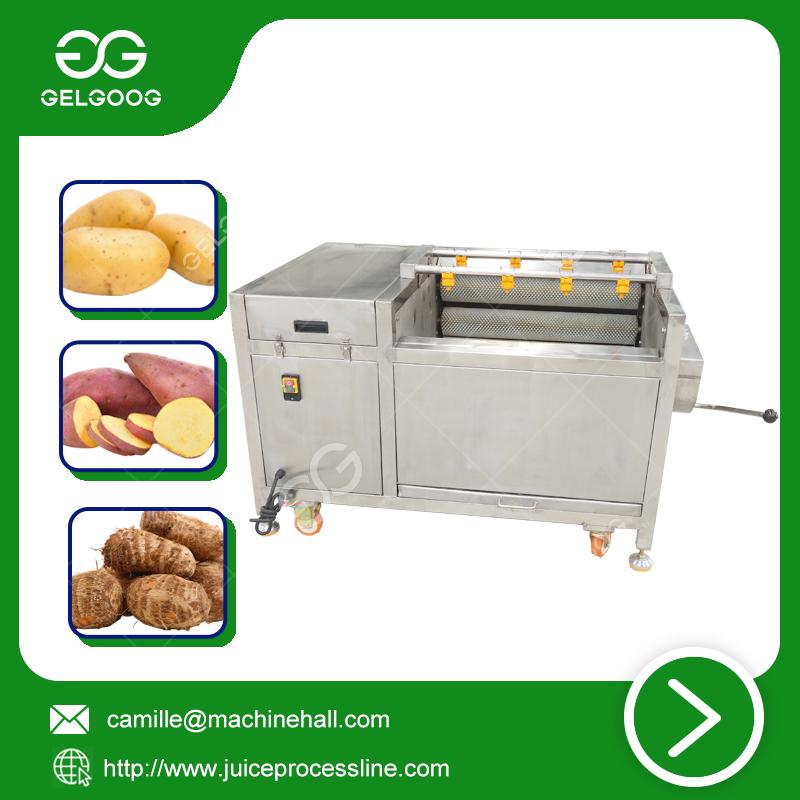

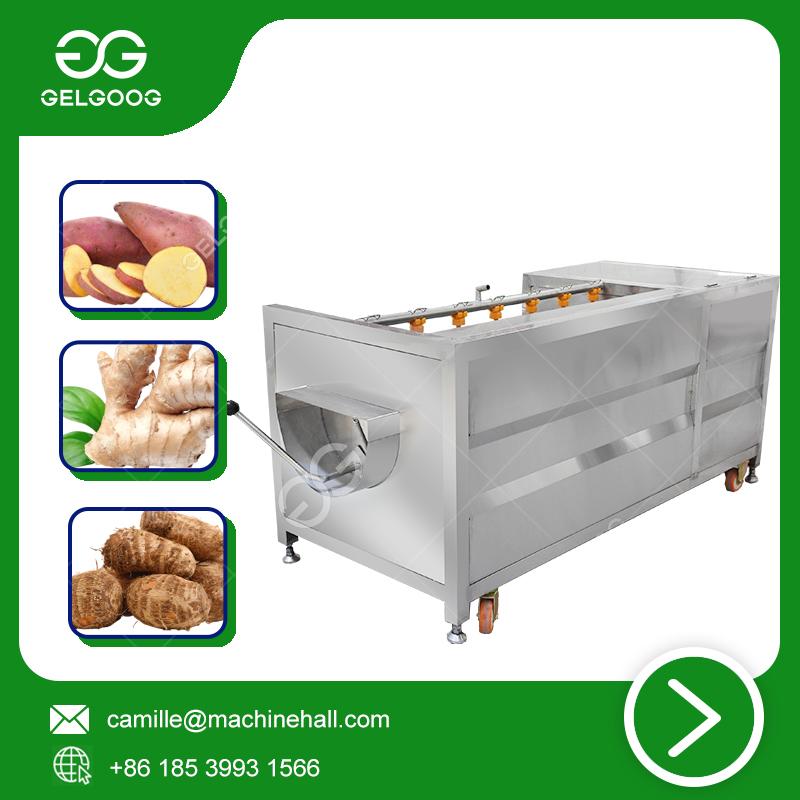

The brush peeling washing machine is the fruit and vegetable washing and peeling equipment produced by our company. It has the characteristics of novel and tight structure, energy saving, high production efficiency, thorough cleaning and peeling, little damage to fruits and vegetables, and wide application range. This machine is widely used for peeling and cleaning carrots, potatoes, potatoes and other fruits and vegetables, especially suitable for cleaning and peeling fruits and vegetables growing in soil.
Working principle
The brush peeling washing machine is mainly composed of a frame, a transmission motor, a transmission cover, a spray pipe, a brush roller, a water tank, a discharge door cover, a discharge hopper, a door cover latch and other components, of which the brush roller is half The circular shape is evenly distributed and is driven by the chain and gear driven by the reducer, and the speed is about 8r/min. There are 7 brushes in the drum. The brushes are in a tangential spiral shape. The upper part of the drum is equipped with a high-pressure spray pipe so that the material can be washed during the whole movement. The washing pressure is 10bar. The raw materials of fruits and vegetables enter the drum evenly through the conveyor. Due to the rotation of the drum, the material is constantly turned over. The brushes on the surface of the material and the drum, as well as the surface of the material and the material, are rubbed against each other. At the same time, the spray head sprays high pressure water to wash the surface of the material. , The cleaned sewage, silt and fruit and vegetable skins flow into the water tank through the gap of the brush roller and are discharged from the sewage outlet. The peeling time depends on the flow rate of the material from the inlet to the outlet, and the speed can be adjusted.
Installation, adjustment, use, operation
1. Tighten all bolts on the whole machine.
2. Adjust the level of the whole machine, clean the inside and outside of the whole machine, and keep it clean.
3. The bearings and reducer parts are required to be well lubricated, and lubricating oil with specified marks is added regularly.
Parameter
|
Model
|
Power（KW）
|
Size（mm）
|
Capacity（KG/H）
|
Weight（KG）
|
Roller Size（mm）
|
|
GGXM800
|
1.1
|
1600*850*800
|
400
|
220
|
800
|
|
GGXM1000
|
1.5
|
1800*850*800
|
600
|
260
|
1000
|
|
GGXM1200
|
1.5
|
2000*850*800
|
800
|
280
|
1200
|
|
GGXM1500
|
2.2
|
2300*850*800
|
1000
|
320
|
1500
|
|
GGXM2000
|
3
|
2800*850*800
|
1500
|
420
|
2000
|
|
GGXM2600
|
4.37
|
3100*850*1450
|
2000
|
600
|
2600
|
